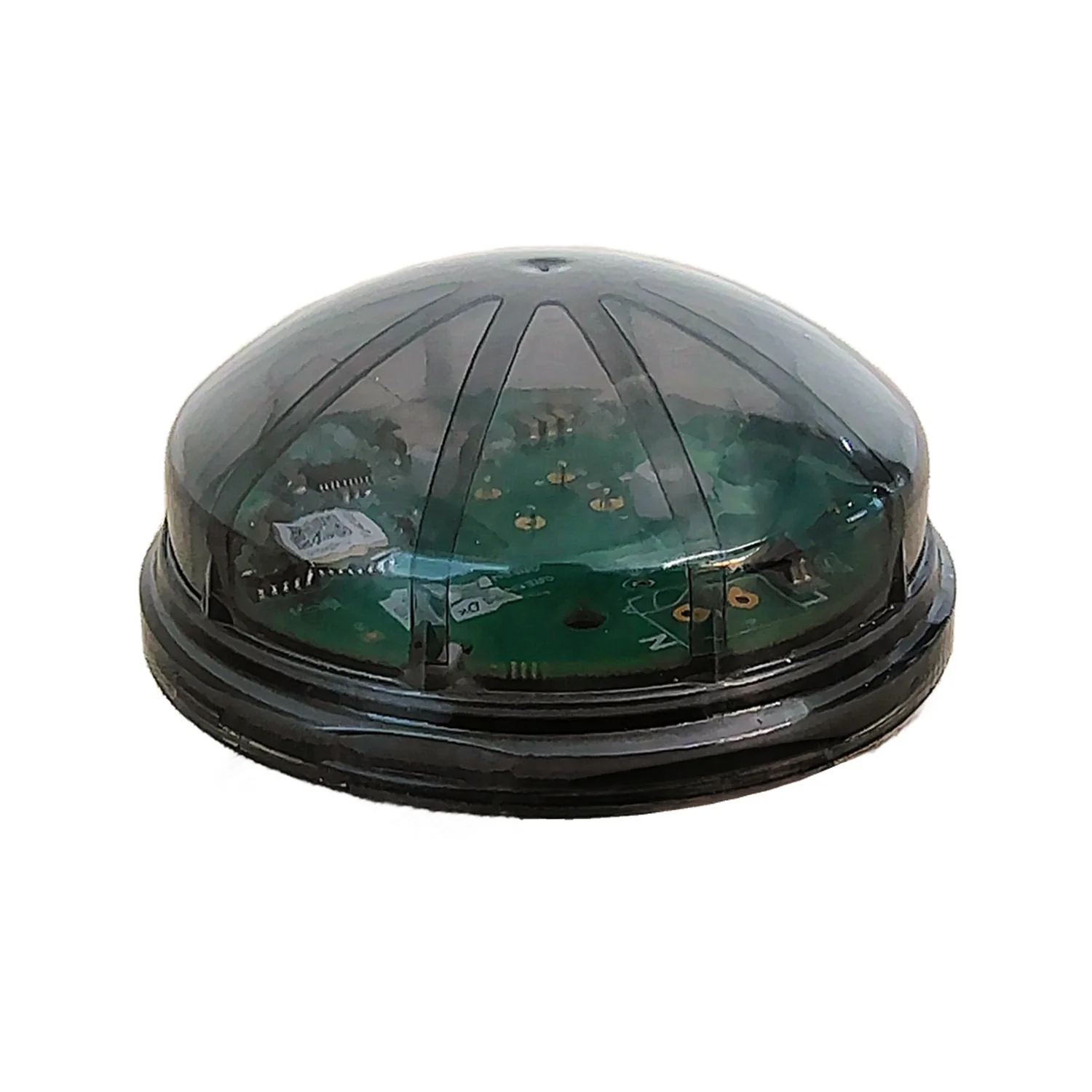

Zhaga B18 Satellite Time Source for Casambi Networks ~ Model CBU-SKYTIME-ZG

controller only ~ power supply, LEDs and all other accessories are sold separately

Description

The CBU-SKYTIME-ZG is a Zhaga B18 Satellite Time Source designed for Casambi networks, providing precise time synchronization without an internet connection. It features a GPS-based Real Time Clock (RTC) that automatically updates the Casambi network, ensuring accurate timer operations even after blackouts or power interruptions. The device requires no battery, and time synchronization remains unaffected by the duration of power loss.

The CBU-SKYTIME-ZG transmits the current time over Bluetooth Low Energy to the Casambi network and is configurable via the Casambi mobile application on iOS and Android devices. It includes an internal GPS antenna and supports automatic network synchronization at startup.

The CBU-SKYTIME-ZG is available in a 12–24 Vdc Zhaga (ZG) enclosure, offering an IP67-rated design and extended temperature range for reliable outdoor or indoor use. Each Casambi network requires a single CBU-SKYTIME unit for time synchronization.

This smart device undergoes a 100% functional test and is backed by a 5-year warranty, ensuring long-term reliability for professional lighting installations and automated timer-based scenarios.

General specifications

• Model: CBU-SKYTIME-ZG
• Input voltage: 230V AC
• Supply voltage: 12 - 24V DC
• Frequency rate: 50 Hz
• Working temperature range: -20/+60°C (-4 ~ 140°F)
• Protection rating: IP67
• Dimensions: 80 x 80 x 38.5mm (3.15” x 3.15” x 1.52”)
• Warranty: 5years

Downloads

• CBU-SKYTIME-ZG cut sheet

Important Notes
