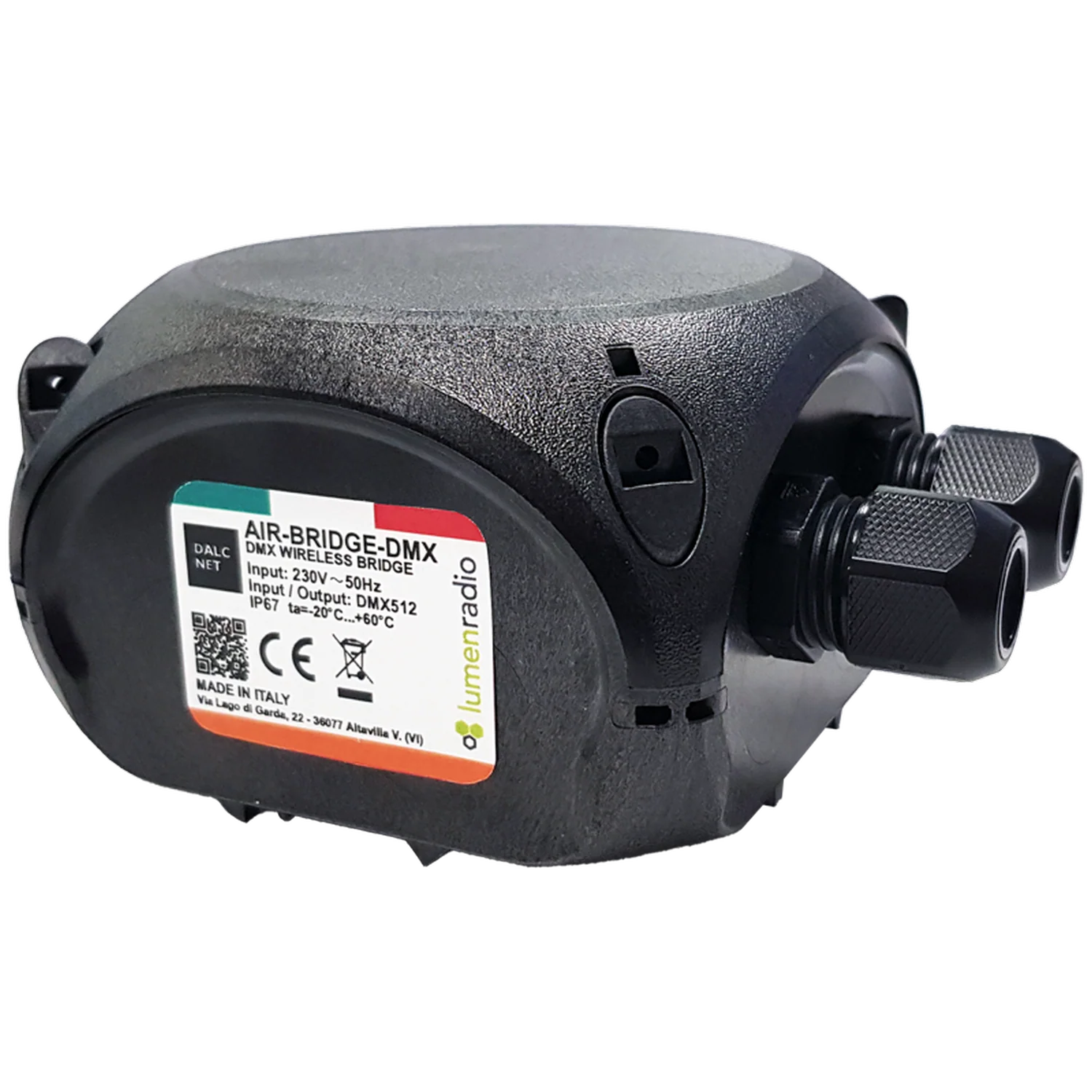

Wireless DMX Transmitter and Receiver System ~ Model AIR-BRIDGE-DMX

Single wireless DMX transceiver only

Description

AIR-BRIDGE-DMX is a wireless transmitter and receiver system powered by the LumenRadio module with integrated Bluetooth, converting DMX protocol (including RDM functionality) into a seamless wireless signal. With concurrent Bluetooth, setup and configuration are simple, enabling precise lighting control via the LumenRadio CRMX Toolbox© mobile app on portable devices.

This AIR-BRIDGE-DMX operates by transmitting data packets wirelessly from a DMX controller to a receiver, typically placed near lighting fixtures, streamlining traditional DMX cable setups and significantly reducing setup time and costs in live productions. By pairing a Master transmitter (TX) with multiple Slave receivers (RX) through an external pushbutton, AIR-BRIDGE-DMX efficiently supports a wide range of lighting configurations.

Using the LumenRadio CRMX Toolbox© app, which is available free from both the Apple App Store and Google Play, you can manage various system parameters, including selecting modes of operation (Transmitter or Receiver) for customized setups. This wireless DMX solution transforms traditional wired DMX installations into a rock-solid, flexible, and easy-to-use wireless network system designed for professional lighting environments.

Each AIR-BRIDGE-DMX transceiver can be configured to operate as a wireless DMX transmitter or as a wireless DMX receiver. Multiple AIR-BRIDGE-DMX devices can be used as receivers which are connected to a single transmitter for a multi-point network. Since both a transmitter and receiver are required to complete a wireless DMX link, at least two devices are required to build a wireless DMX bridge or wireless DMX network with the AIR-BRIDGE-DMX transceiver.

General Specifications

• Model: AIR-BRIDGE-DMX
• Contents: 1 transceiver with external antenna
• Casing Material: Plastic
• Antenna" IP67 SMA (included)
• Overall dimensions: 90 x 90 x 65mm (3.54” x 3.54” x 2.56”) - excluding antenna
• Supply voltage: 85-305V AC
• Range: Up to 750m (2500ft) unobstructed
• Bus: DMX
• Protection grade: IP67
• Working temperature range: -20/+60°C (-4°F/140°F)

Downloads

• AIR-BRIDGE-DMX cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request
