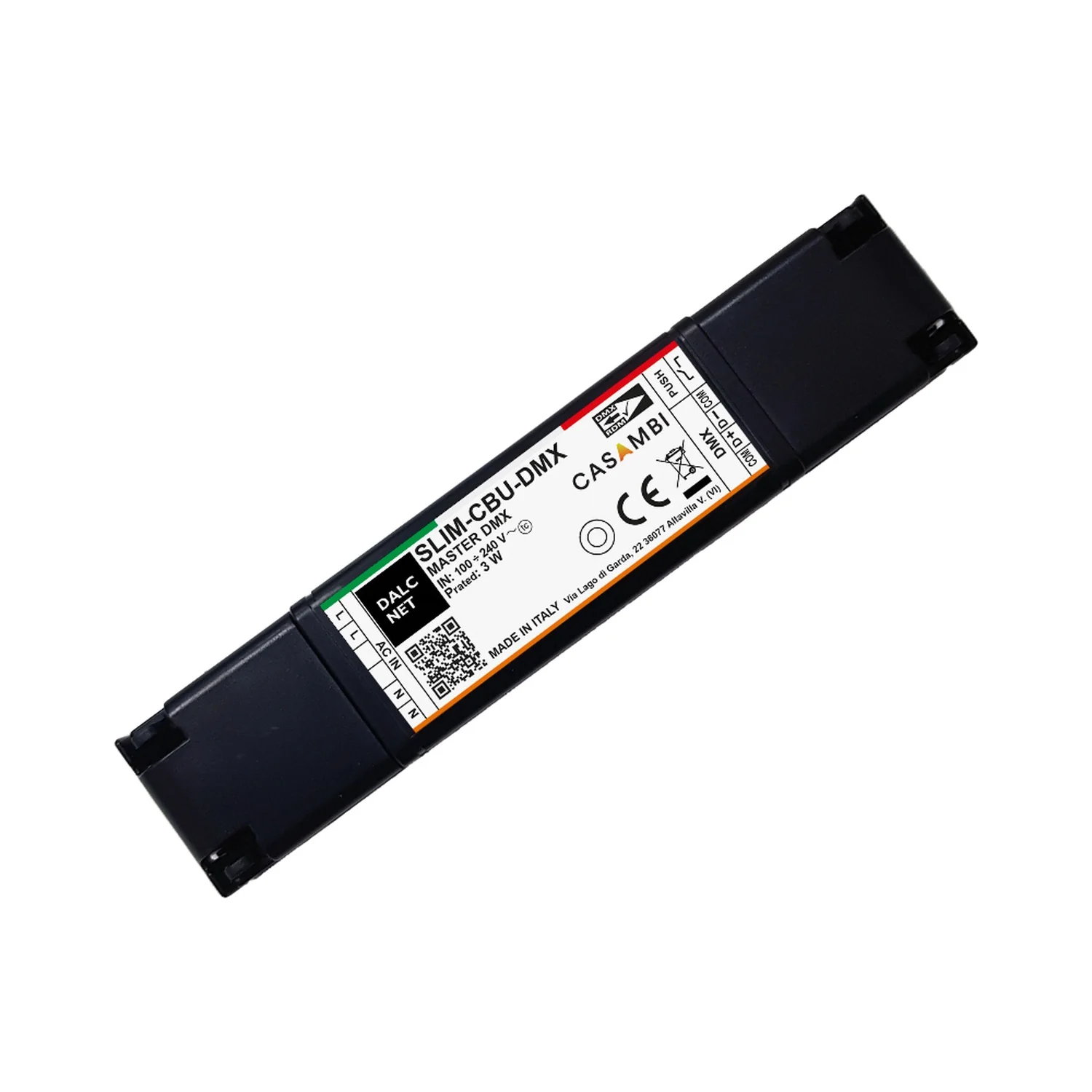

Slimline Casambi to DMX Signal Converter ~ Model SLIM-CBU-DMX

controller only ~ power supply, LEDs and all other accessories are sold separately

Description

The SLIM-CBU-DMX is a slimline Casambi to DMX signal converter designed to connect Casambi wireless lighting control systems with DMX lighting networks. This DMX Casambi protocol converter can operate in both directions, functioning as either a Casambi to DMX converter or a DMX to Casambi converter, allowing flexible integration between Casambi Mesh networks and DMX-controlled lighting systems.

The SLIM-CBU-DMX supports Bluetooth Low Energy (BLE) communication and DMX bus control, with configuration and control available through the Casambi mobile application. In Master mode, it converts commands from the Casambi Mesh network or mobile app into DMX control signals. In Slave mode, it receives DMX signals and translates them into commands for the Casambi Mesh network.

The SLIM-CBU-DMX operates on 230V AC input at 50/60 Hz and includes overvoltage protection and an input fuse for reliable performance. It also features local control via a Normally Open (N.O.) push button.

Built for professional lighting applications, the SLIM-CBU-DMX Casambi DMX converter supports an extended temperature range, undergoes 100% functional testing, and is backed by a 5-year warranty for dependable operation in smart lighting and DMX control systems.

General specifications

• Model: SLIM-CBU-DMX
• Input voltage: 230V AC
• Frequency rate: 50/60 Hz
• Working temperature range: -10/+60°C (14 ~ 140°F)
• Protection rating: IP20
• Dimensions: 136 x 29 x 21mm (5.35” × 1.14” × 0.83”)
• Warranty: 5years

Downloads

• SLIM-CBU-DMX cut sheet
