6-Core 14/16 AWG PVC Sleeved Wire for RGB+TW LED Strip

Wire only ~ all other accessories are sold separately

Description

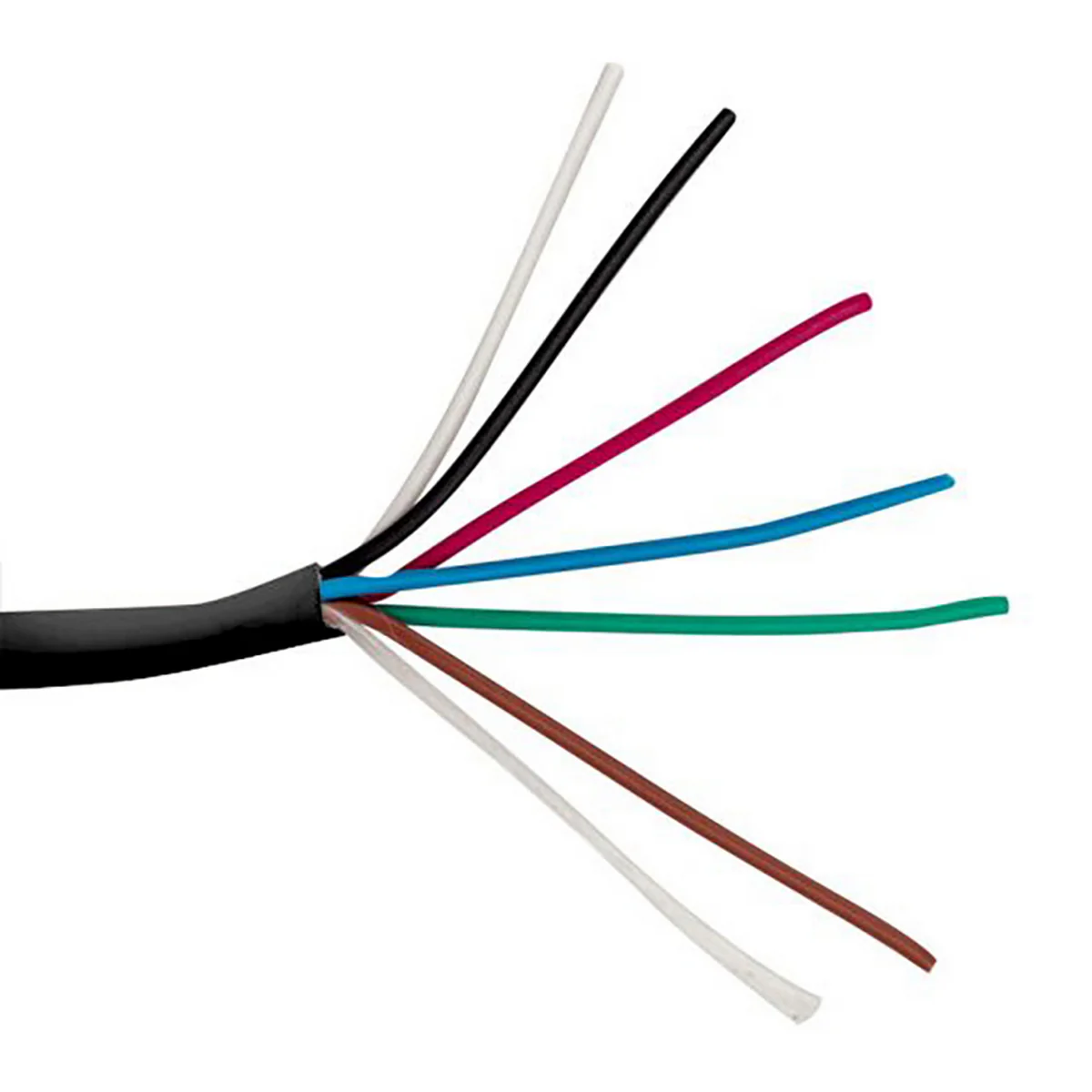

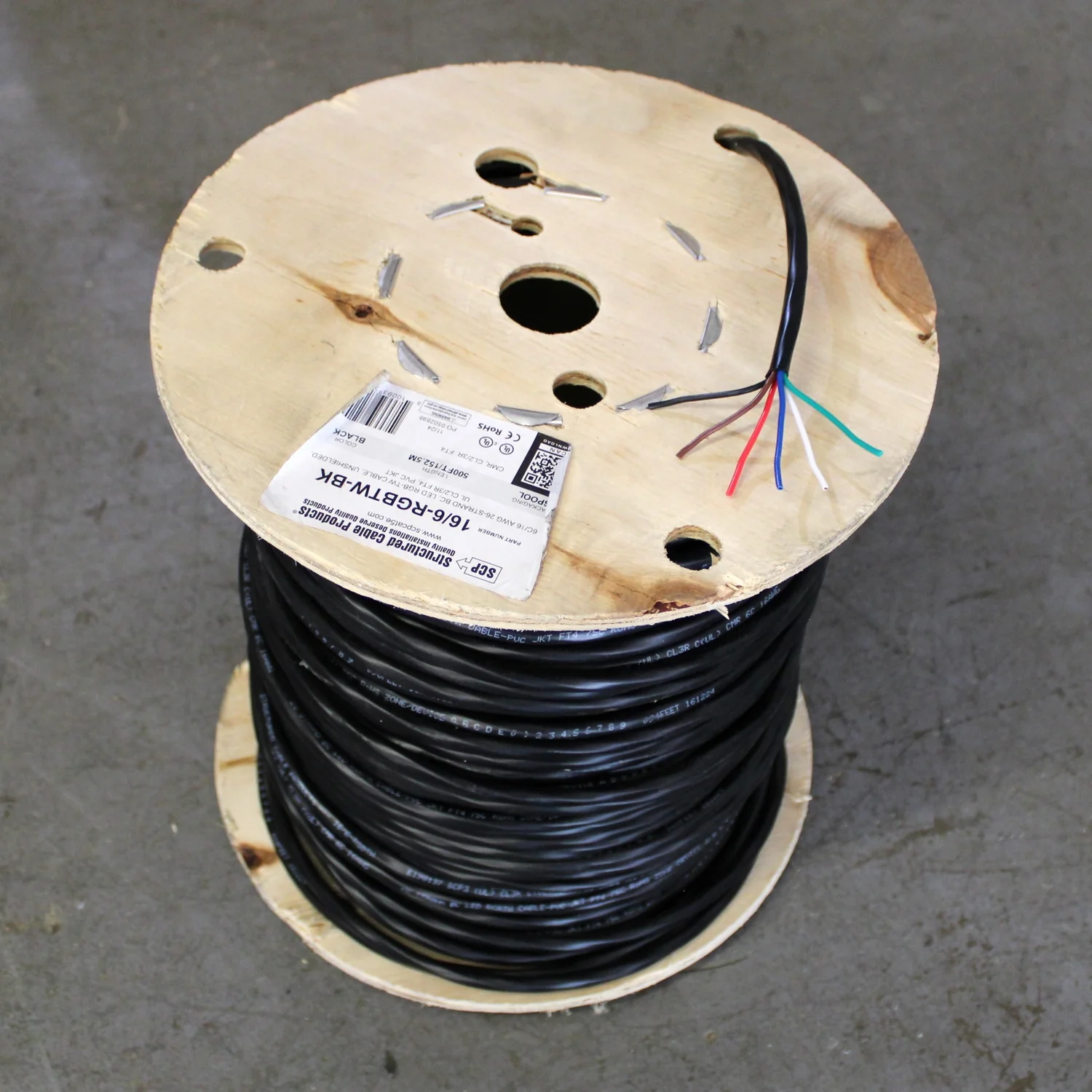

The 6-core PVC wire is a high-quality wire designed to provide an efficient and reliable connection for RGB+TW (Tunable White) LED strip installations. It features six individually insulated 14 or 16 AWG stranded copper conductors in PVC insulation (Black, White, Green, Blue, Brown, and Red) enclosed in a single electrical wire sleeve.

The black PVC outer jacket ensures durability and protection in various indoor environments. The cable wire is UL-rated for CMR, CL2/3R, and FT4, meeting safety and fire-resistance standards.

General specifications

• Sold per foot
• 6 cores (Black, White, Green, Blue, Brown, and Red)

• Maximum current: 6.4A @ 25°C (77°F)
• Rated voltage: 300V
• Operating temperature: 20°C – 75°C (68°F – 167°F)
• Insulation material: PVC
• Jacket material: PVC
• Conductor: Stranded Bare Copper

Downloads

• 14 AWG cut sheet
• 16 AWG cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
