LED Mounting Kit for Holston74 Profile with Hexagon Heatsink
LED mounting kit for Holston74 profile ~ diffuser tube, LED strip, and all other accessories are sold separately
Please get in touch with us for a complete custom LED fixture
Description
This LED mounting kit is for our Holston74 series which is a 2.91" square polycarbonate LED diffuser tube.

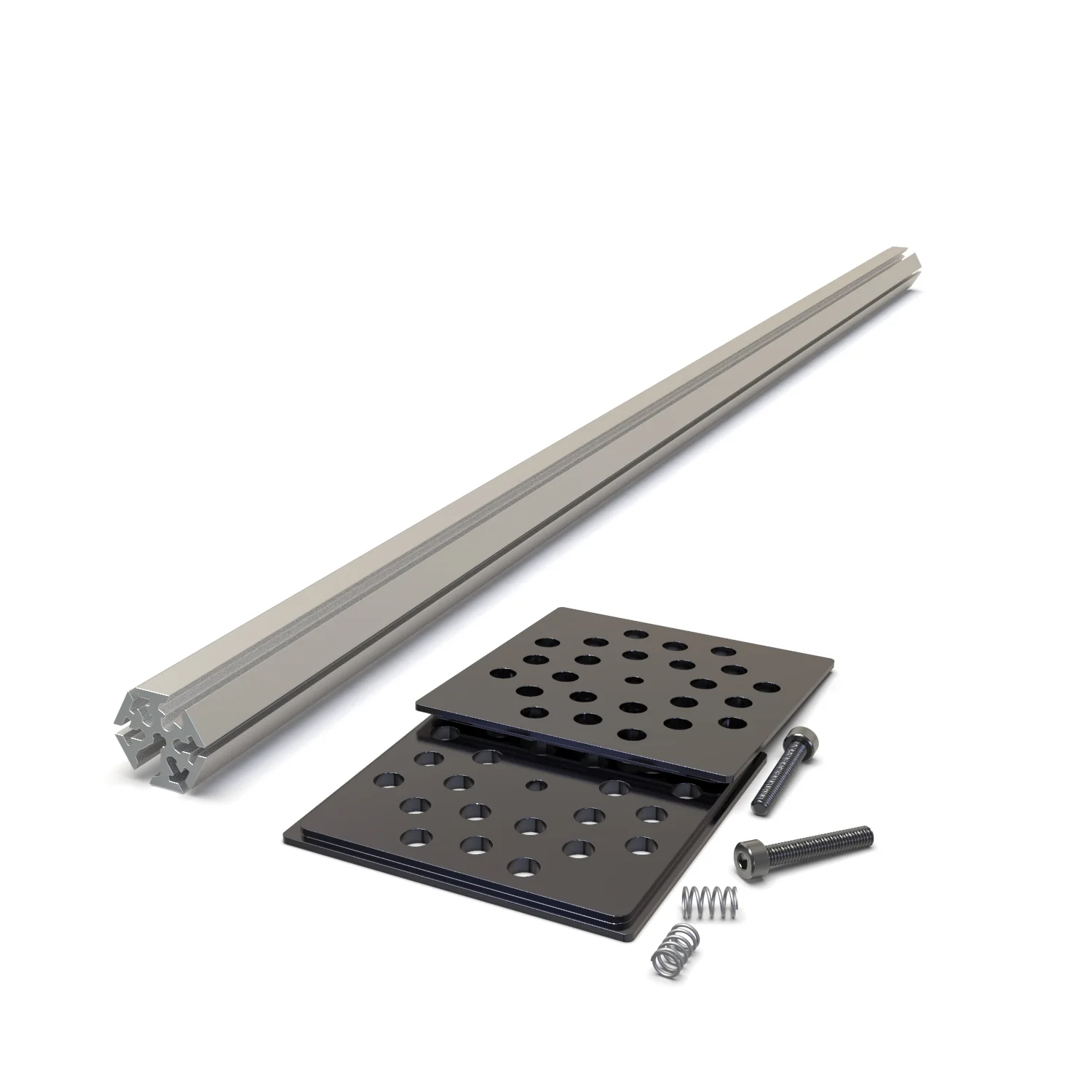

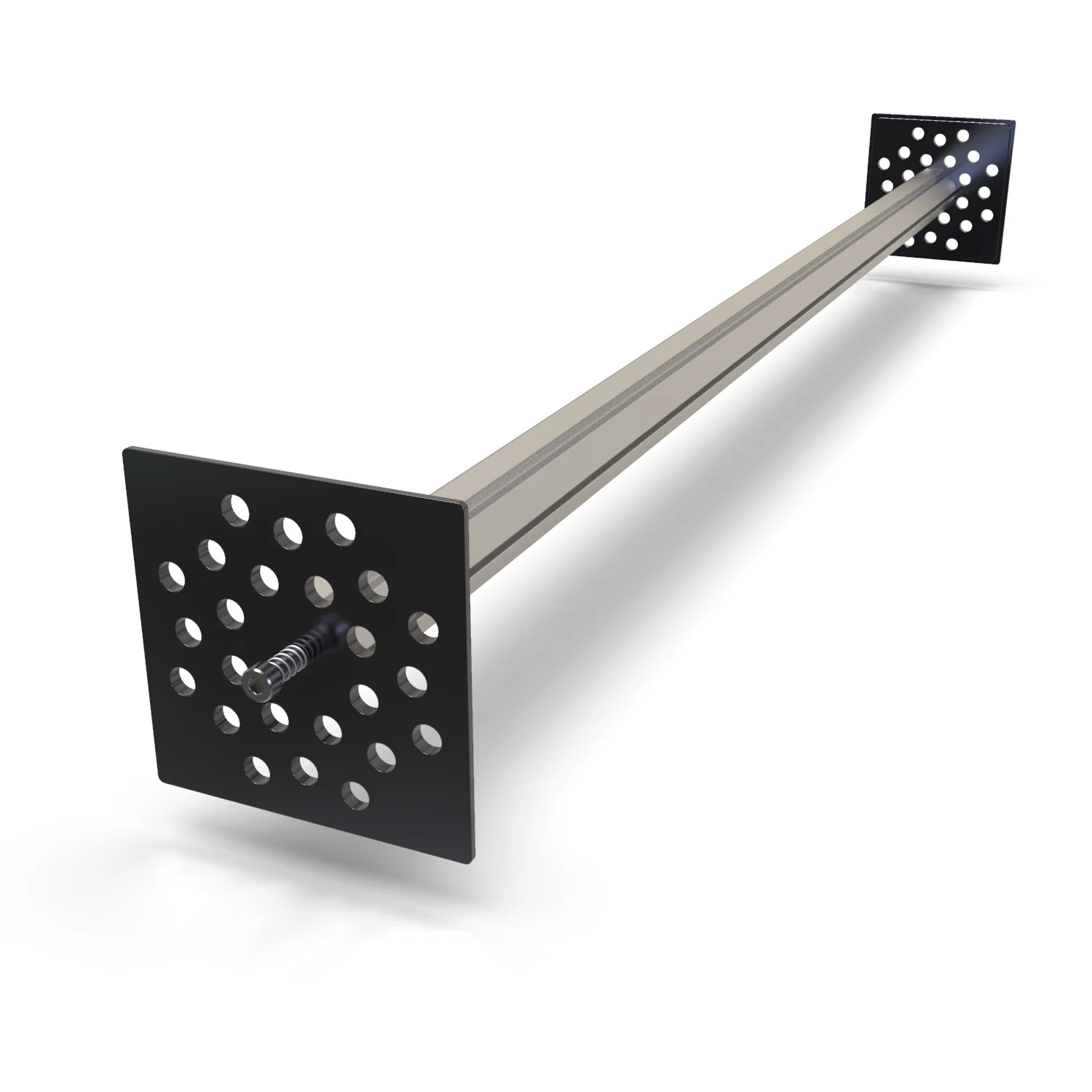

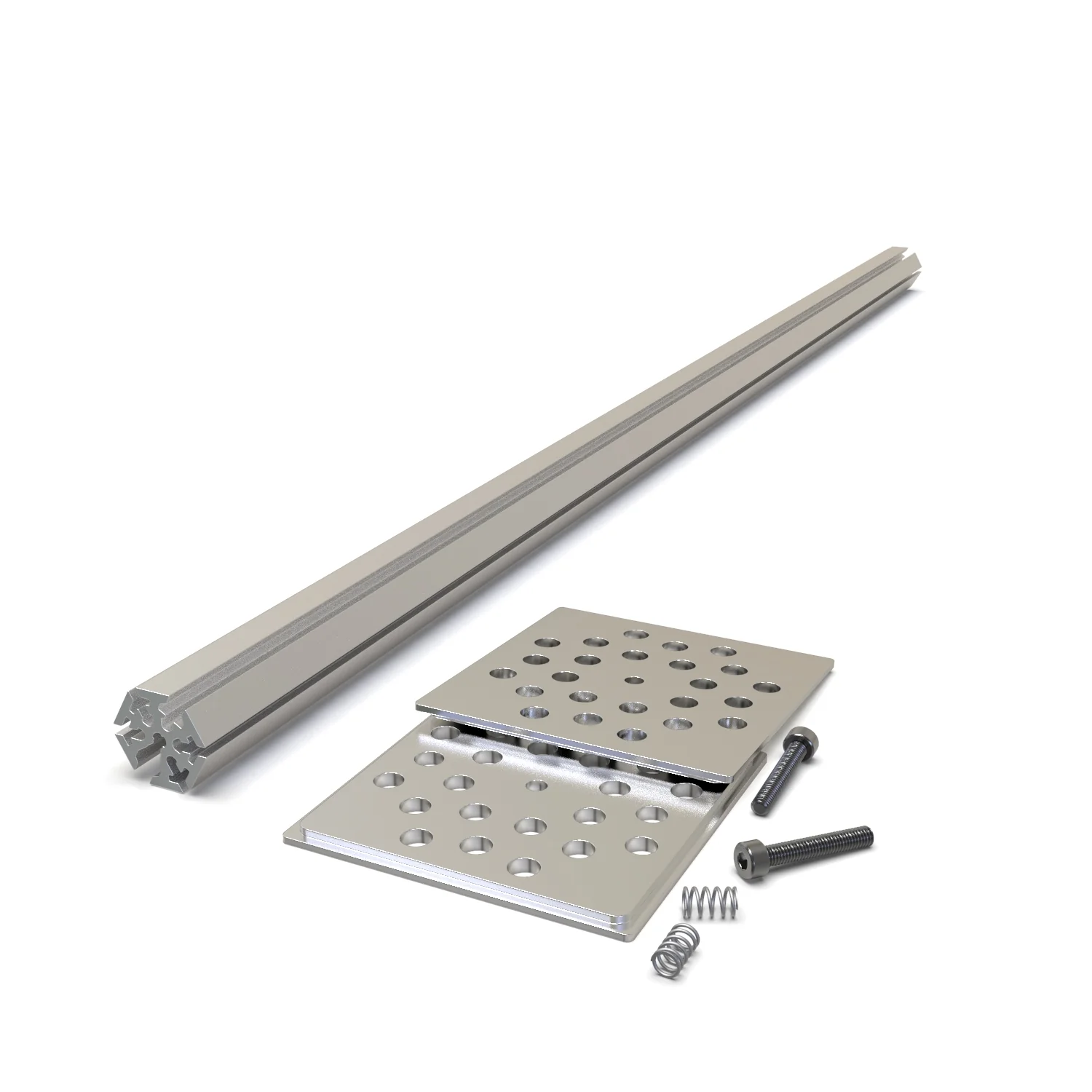

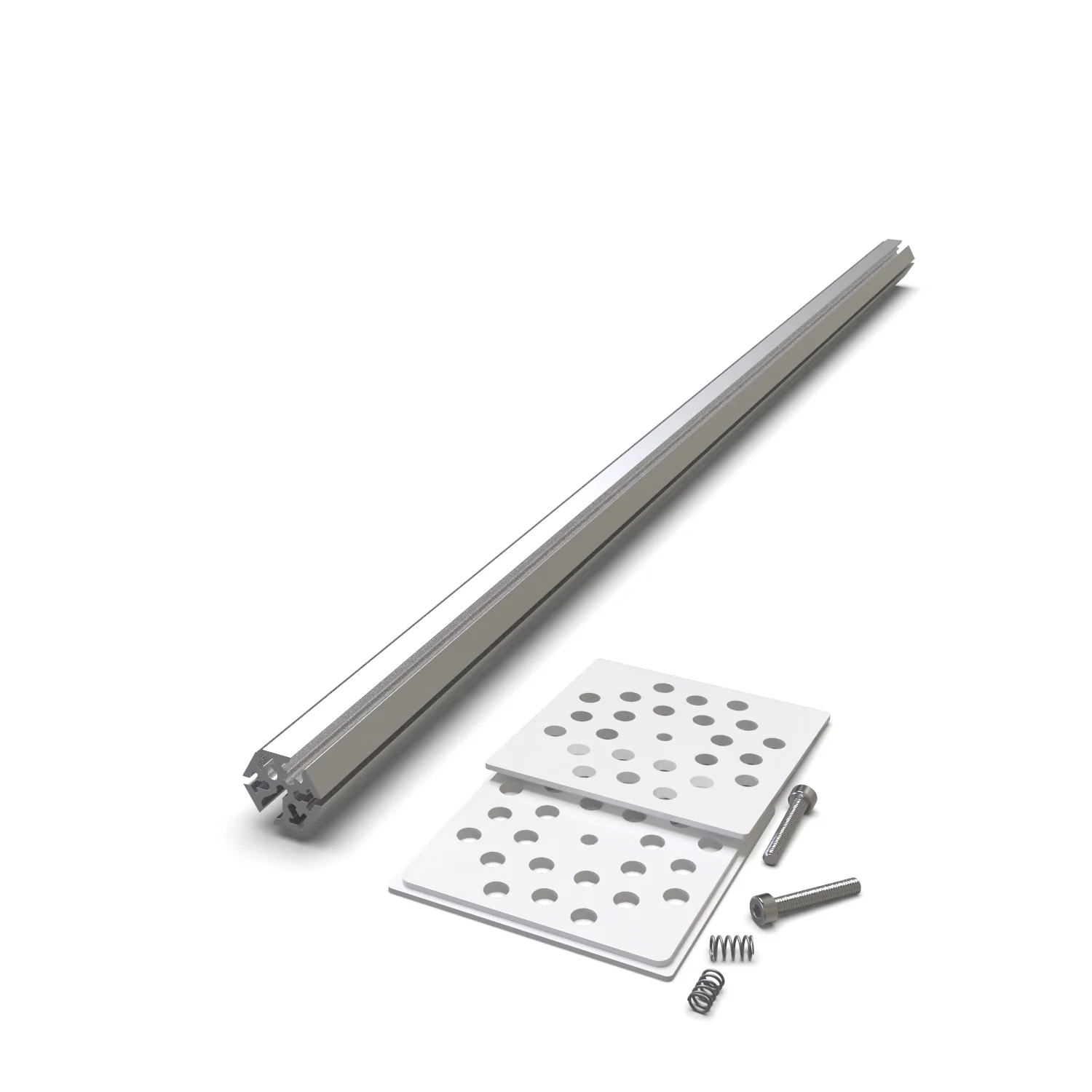

The kit consists of an aluminum Hexagon tube, onto which the LED strip is installed, and two anodized aluminum end cap kits. The LED mounting tube is held in place by the end caps and up toĀ 6Ā LED strips can be installed on the mounting tube provided the total power does not exceed 30W/m.
Each end cap set contains aĀ socket head screw and spring which is installed through the end cap into the end of the LED mounting tube. For custom-length fixtures, you may cut the LED mounting tube to lengthĀ and thread the end hole with an M4 tap set
A range of mounting accessories are also available and we can custom make or source most mounting brackets.
General specifications
- Maximum LED strip width: 8mm (0.326")
- Maximum LED power 30W/m (5W/m x 6) or (10W/m x 3)
- Hexagon tubeĀ size: 22mm (0.866") with M4 threaded holes in each end
- End cap colors:Ā Silver, Black, and White
- Material: Aluminum and steel
- Bolt size: M4 x 0.70 mm Thread, 25 mm Long
- Compatible with: Holston74 profile
Important notes
- LED strips, covers, mounting brackets, shelf/sign panels, and other accessories are sold separately from the aluminum profile. Select the available components below.
- Please note that raw or natural profile channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
- LED profiles can easily be cut by hand or by machine.
- For your convenience, Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
- We can also assemble a plug-and-play light fitting with this profile according to your specifications.
- Please note that we cannot refund or replace LED profiles and covers that have been cut.
- Items in stock are shipped the same day from Knoxville, Tennessee, United States.
- Bulk pricing is available on request
Original: $60.34
-70%$60.34
$18.10Product Information
