3-Core 18 AWG PVC Sheathed Wire for Tunable White LED Strip

Wire only ~ all other accessories are sold separately

Description

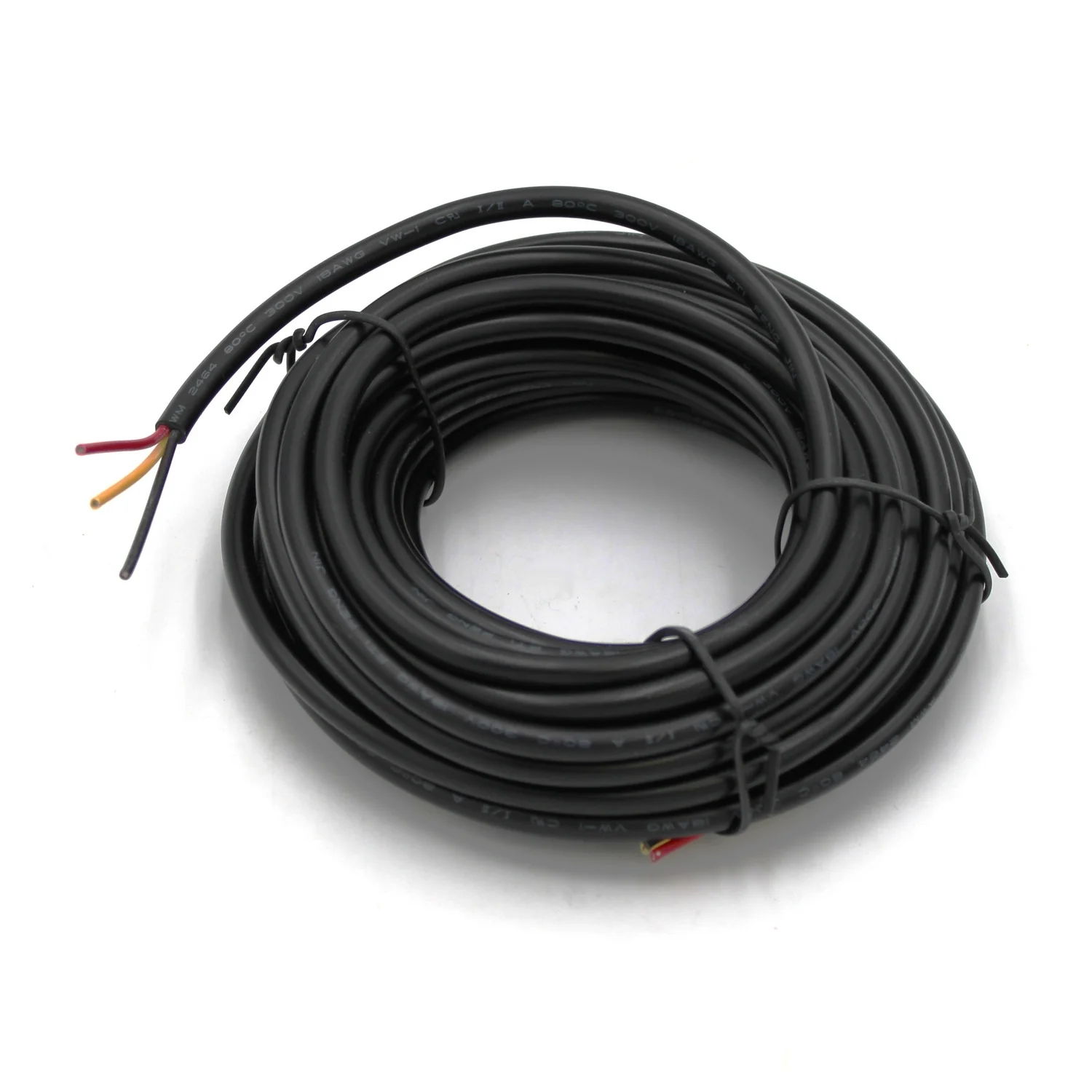

The 3-core 18 AWG conductor electrical wire is a high-quality sheathed wire that consists of three parallel conductors: black, red, and yellow. It features UL2464 certification and is made of 41 strands of 0.16 mm tinned copper wire, ensuring high conductivity, low resistance, and excellent corrosion and oxidation resistance. The stranded oxygen-free copper construction allows for flexibility and durability, making it suitable for various electrical applications.

The wire is encased in a black PVC jacket with an outer diameter of 5.5±0.2mm (0.22 ± 0.008"), providing insulation and flame retardancy rated at VW-1 & FT1. It supports a maximum input voltage of 300V and is compatible with DC 5V, 12V, and 24V applications.

Easy to strip, cut, and solder, the 18 AWG 3-core wire is ideal for low-voltage wiring, LED lighting connections, LED splitters, landscape lighting, transformers, bulbs, marine wiring, speakers, automotive applications, sprinkler systems, and thermostat cables. It is suitable for both direct burial and prolonged sun exposure, ensuring long-lasting use in outdoor and indoor installations.

General specifications

• Sold per foot
• Diameter: 5.5±0.2mm ((0.22 ± 0.008")
• Material: PVC + Tinned Copper
• Color: Black
• 3 cores in black, red and yellow
• Insulator: PVC
• Temperature Rating: -40°C to 80°C (-40℉ to 176℉)
• Flame retardant: VW-1 & FT1
• UL Listed

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request
